M∙Biopsy® Automatic Disposable Needle

Designed with focus on ergonomics

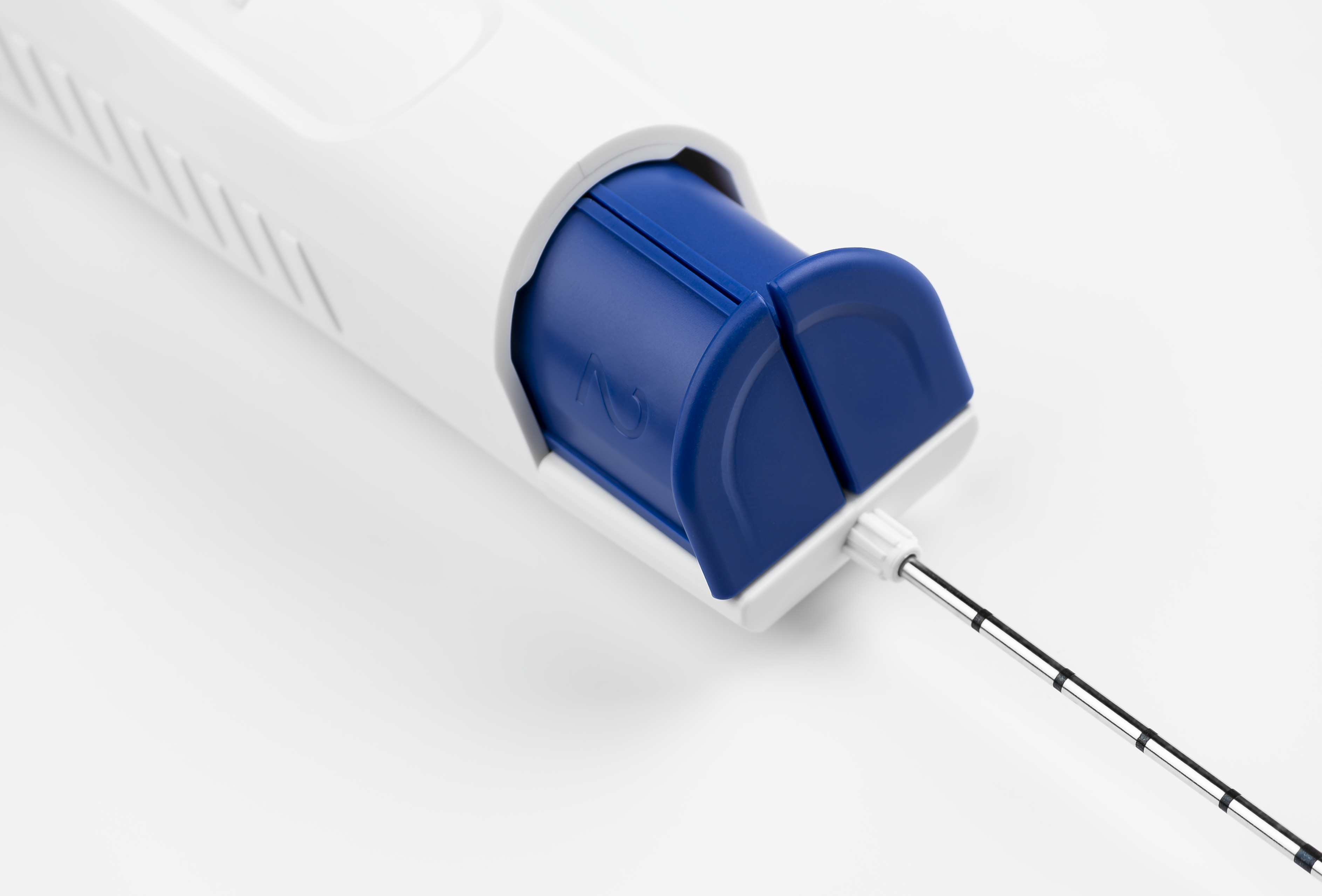

The M∙Biopsy® fully automatic disposable biopsy instrument is a user-friendly biopsy device designed to provide a high-quality biopsy sample.

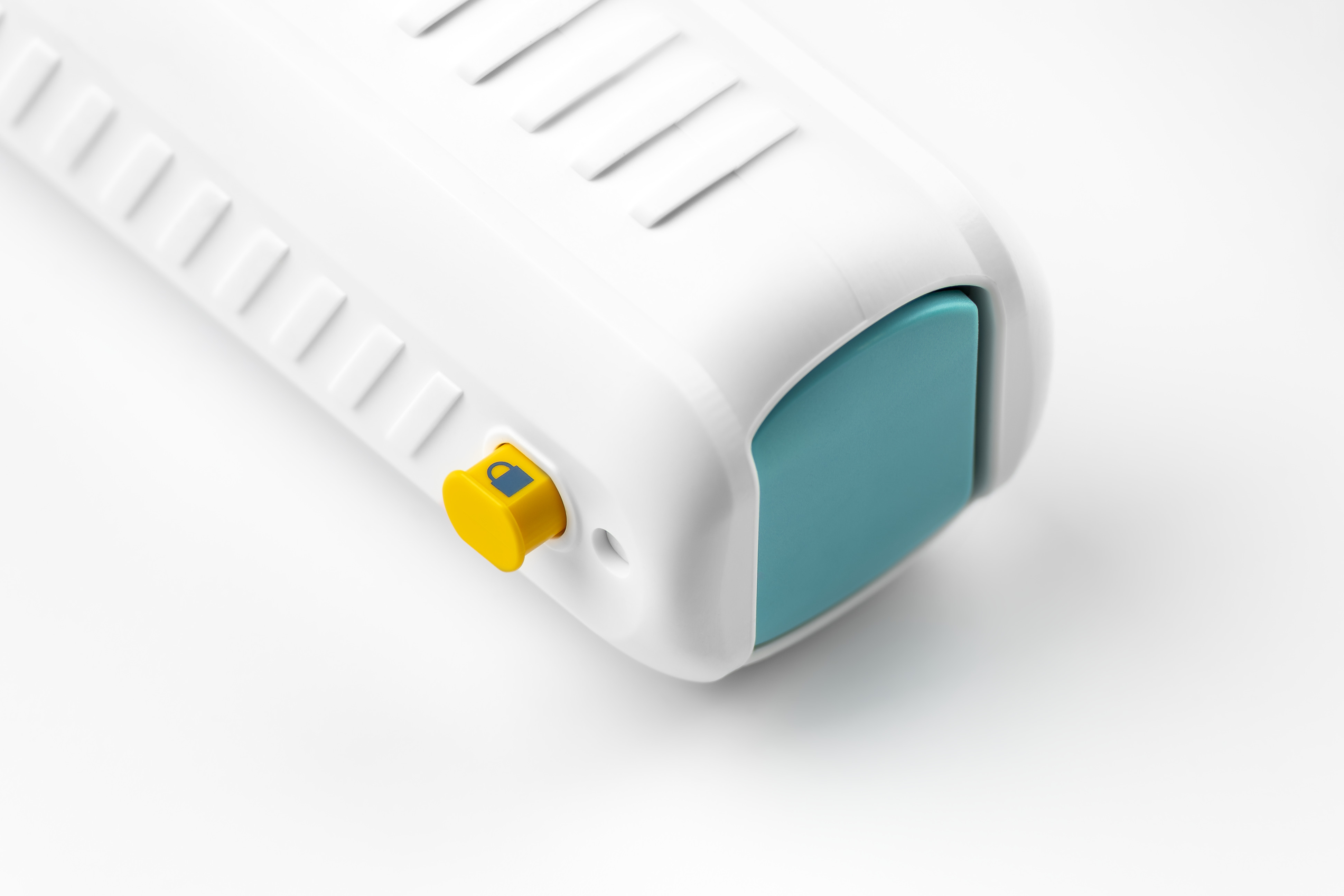

It has been designed with focus on ergonomics to secure a comfortable grip, independent of device orientation. The left and right loading sliders secures a high-quality sample without compromising device fire power.

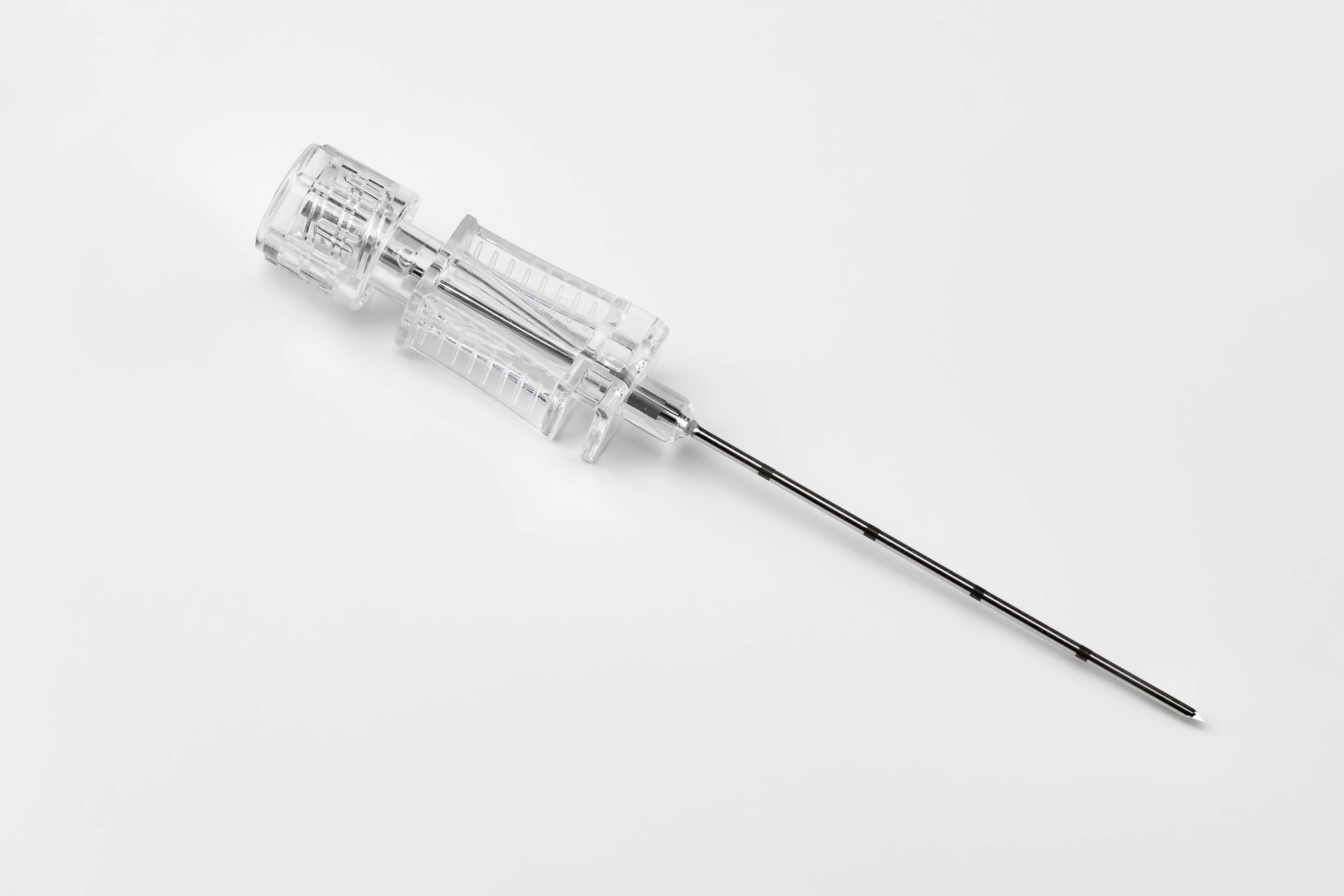

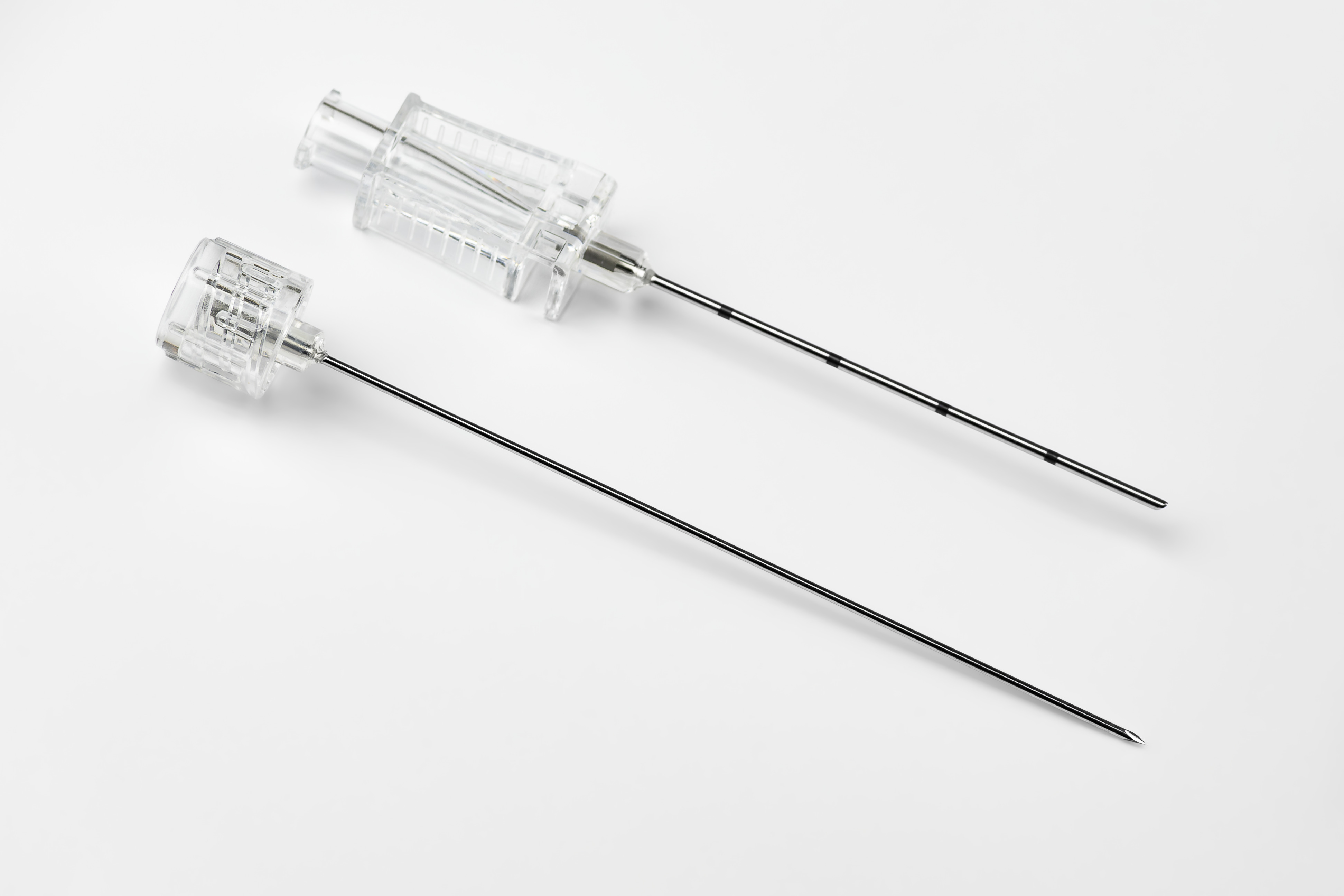

The M∙Biopsy® coaxial needle comes with a sharp trocar tip and a transparent needle hub. The needle features an additional blunt stylet to minimize damage to tissue, vasculature, and organs.

Features

Ergonomic and lightweight one-handed design to secure comfortable grip, increase control, and minimize needle movement during imaging.
2-stage left and right loading button provides reduction of force needed to cock device.
Comes with 11mm or 22mm throw length to meet a variety of clinical needs.
Available as a single device or as a set with a coaxial needle for improved procurement and inventory control.

M-Biopsy Automatic Disposable Biopsy Gun

Ref. no.	Gauge	Length	Throw Length	Box	Ref. no.	Gauge	Length	Throw Length	Box
N60112100-CE	12	10cm	11mm	5	N70112100-CE	12	10cm	22mm	5
N60112130-CE	12	13cm	11mm	5	N70112130-CE	12	13cm	22mm	5
N60112160-CE	12	16cm	11mm	5	N70112160-CE	12	16cm	22mm	5
N60112200-CE	12	20cm	11mm	5	N70112200-CE	12	20cm	22mm	5
N60112250-CE	12	25cm	11mm	5	N70112250-CE	12	25cm	22mm	5
N60114100-CE	14	10cm	11mm	5	N70114100-CE	14	10cm	22mm	5
N60114130-CE	14	13cm	11mm	5	N70114130-CE	14	13cm	22mm	5
N60114160-CE	14	16cm	11mm	5	N70114160-CE	14	16cm	22mm	5
N60114200-CE	14	20cm	11mm	5	N70114200-CE	14	20cm	22mm	5
N60114250-CE	14	25cm	11mm	5	N70114250-CE	14	25cm	22mm	5
N60116100-CE	16	10cm	11mm	5	N70116100-CE	16	10cm	22mm	5
N60116130-CE	16	13cm	11mm	5	N70116130-CE	16	13cm	22mm	5
N60116160-CE	16	16cm	11mm	5	N70116160-CE	16	16cm	22mm	5
N60116200-CE	16	20cm	11mm	5	N70116200-CE	16	20cm	22mm	5
N60116250-CE	16	25cm	11mm	5	N70116250-CE	16	25cm	22mm	5
N60118100-CE	18	10cm	11mm	5	N70118100-CE	18	10cm	22mm	5
N60118130-CE	18	13cm	11mm	5	N70118130-CE	18	13cm	22mm	5
N60118160-CE	18	16cm	11mm	5	N70118160-CE	18	16cm	22mm	5
N60118200-CE	18	20cm	11mm	5	N70118200-CE	18	20cm	22mm	5
N60118250-CE	18	25cm	11mm	5	N70118250-CE	18	25cm	22mm	5
N60120100-CE	20	10cm	11mm	5	N70120100-CE	20	10cm	22mm	5
N60120130-CE	20	13cm	11mm	5	N70120130-CE	20	13cm	22mm	5
N60120160-CE	20	16cm	11mm	5	N70120160-CE	20	16cm	22mm	5
N60120200-CE	20	20cm	11mm	5	N70120200-CE	20	20cm	22mm	5
N60120250-CE	20	25cm	11mm	5	N70120250-CE	20	25cm	22mm	5

M-Biopsy Automatic Disposable Biopsy Gun with matching coaxial needle

Ref. no.	Gauge	Length	Throw Length	Gauge	Length	With Blunt Needle	Box
NS6011410-CE	14	10cm	11mm	13	5,9cm	Yes	5
NS6011413-CE	14	13cm	11mm	13	8,9cm	Yes	5
NS6011416-CE	14	16cm	11mm	13	11,9cm	Yes	5
NS6011610-CE	16	10cm	11mm	15	5,9cm	Yes	5
NS6011613-CE	16	13cm	11mm	15	8,9cm	Yes	5
NS6011616-CE	16	16cm	11mm	15	11,9cm	Yes	5
NS6011810-CE	18	10cm	11mm	17	5,9cm	Yes	5
NS6011813-CE	18	13cm	11mm	17	8,9cm	Yes	5
NS6011816-CE	18	16cm	11mm	17	11,9cm	Yes	5
NS6011820-CE	18	20cm	11mm	17	15,9cm	Yes	5
NS6012010-CE	20	10cm	11mm	19	5,9cm	Yes	5
NS6012013-CE	20	13cm	11mm	19	8,9cm	Yes	5
NS6012016-CE	20	16cm	11mm	19	11,9cm	Yes	5
NS6012020-CE	20	20cm	11mm	19	15,9cm	Yes	5
NS7011410-CE	14	10cm	22mm	13	4,8cm	Yes	5
NS7011413-CE	14	13cm	22mm	13	7,8cm	Yes	5
NS7011416-CE	14	16cm	22mm	13	10,8cm	Yes	5
NS7011610-CE	16	10cm	22mm	15	4,8cm	Yes	5
NS7011613-CE	16	13cm	22mm	15	7,8cm	Yes	5
NS7011616-CE	16	16cm	22mm	15	10,8cm	Yes	5
NS7011810-CE	18	10cm	22mm	17	4,8cm	Yes	5
NS7011813-CE	18	13cm	22mm	17	7,8cm	Yes	5
NS7011816-CE	18	16cm	22mm	17	10,8cm	Yes	5
NS7011820-CE	18	20cm	22mm	17	14,8cm	Yes	5
NS7012010-CE	20	10cm	22mm	19	4,8cm	Yes	5
NS7012013-CE	20	13cm	22mm	19	7,8cm	Yes	5
NS7012016-CE	20	16cm	22mm	19	10,8cm	Yes	5
NS7012020-CE	20	20cm	22mm	19	14,8cm	Yes	5
NS7012025-CE	20	25cm	22mm	19	17,8cm	Yes	5
